Identify RCA Cables Red White and Yellow Cords – Similarities & Differences.

Last Updated on 1 month by On Trends Gear

Having the chance to go cable shopping might give you a huge boost in self-assurance.

Despite this, it might be a significant challenge to track down the perfect lines.

Do not lose hope, as this post will discuss what you need to know about RCA cables, and we are certain that you will find them useful.

Whether in the audio or video sector, RCA cables will get the job done. Let’s dive in.

What is an RCA Cable?

What is an RCA Cable?

Radio Corporation of America is shortened to RCA.

It’s a plug with three different colours that may be attached to the end of a cable and used to hook into a TV, projector, or other devices with three corresponding outputs on the back.

 The component device’s audio and video signals are sent to the output device through the RCA connections.

Types of RCA Cables

When working with RCA cables, it is critical to have a comprehensive understanding of the many types of cables that are available and how to use them efficiently.

The many types of cables are essential, in particular when connecting equipment that is used for audio and video broadcasts.

 There are two distinct varieties of RCA cables, namely:

  • Composite video RCA cable
  • Component RCA cable

Composite Video RCA cable

Cmple - 3-RCA Composite Video Audio A/V AV...
  • RCA cord (connect to video and audio L or R input) 3-Male to 3-Male RCA
  • Flexible high-quality PVC material, Oil-resistant, Wear-resistant, Acid-resistant and...

This is an analog method of video transmission.

It just transmits a single signal that contains all of the video data. The transmissions are, regrettably, of poor quality.

This is so because when the three signals that make up analog video are mixed, the quality suffers.

The many color schemes used allow RCA cable brands to be differentiated. Red, white, and black are the three most common colors.

Cables link the left and right audio channels. Yellow is used to represent the composite video.

Component RCA cable

Sale
Cmple - 3-RCA Male to 3RCA Male RGB Component...
421 Reviews
Cmple - 3-RCA Male to 3RCA Male RGB Component...
  • Component video (YPbPr) produces the highest quality analog video
  • High-Performance Fully Molded Flexible Black PVC Jacket, Oil-resistant,...

Each video line in this cable is a different colour; the red, blue, and green lines make up the whole signal.

 Audio cables come in various colours; sometimes, you may even choose from red, black, or white.

The primary function of this is categorization.

Superior quality may be expected from component RCA cables, as opposed to the cheaper composite RCAs.

Furthermore, they have a similar scale to high-definition television

What this means is that certain specific brands of cable have a higher resolution capability than the majority of other cables.

This capability supports video resolutions of up to 1080p in high definition.

How to Identify RCA Cables Easily

RCA cables are available in red, yellow, and white, which are each separate colours.

These cables employ RCA jacks or CINCH/AV phone connections.

 The main functions of the plugs in an appliance are to transmit visual and audio signals.

Depending on the kind of transmission, RCA cables divide data into many streams. The data is then sent to a particular connector through the wires.

To put it simply, the RCA designates one wire for the video display, one for the left speaker, and one for the right speaker.

You must be careful with the configuration, even though this system provides high-quality video and sound.

This is because a bad construction will result in poor sound and video quality due to the tangle of wires.

Similarities & Differences Between RCA Cables

Analog video signals are sent using component and composite audio-visual connection wires.

The similarities between the two forms, however, stop there. The majority of gadgets no longer accept old-style composite cords.

Modern high-definition gadgets are compatible with the newer component cable standard

However, even component cables have seen better days; with the newest generation of audio-visual equipment, high-resolution HDMI is now often used.

Differences Between RCA Cables

Composite RCA Cable Component RCA Cable
The video signal is carried via the yellow RCA connection on composite RCA cables, while audio signals are carried by the red and white RCA connectors. In contrast to composite cables, which employ red and white audio connections, component cables separate the video into three parts: one for brightness and two for colour information.
The transmission of analogue signals is accomplished via the use of composite RCA.Video signals are sent from one location to another using the component.
Composite RCA’s versatility allows it to be utilized in various setups, including components.Audio and video signals are sent from one location to another using the component
The Composite RCA cable is used to transmit the signal as a whole.The signals are first divided into three parts before beginning their transmission via components.

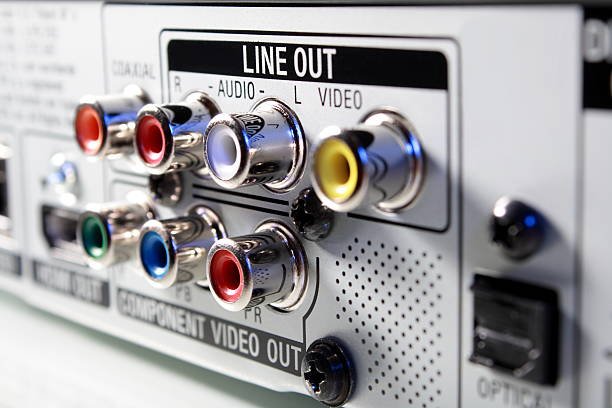

Uses of RCA Cables

The RCA cables may be used for a wide variety of purposes.

Even though HDMI cables may serve the same purpose as RCA cables, the latter is still widely used.

These cables may be used to link video recorders to a wide range of audio and visual output devices, including televisions, stereos, and speakers.

Professional-quality camcorders often include three RCA jacks.

Thus, the camcorder accepts and transmits signals through its three RCA ports, one for audio and two for video.

This results in signal transmission of both audio and video that is both reliable and of excellent quality.

However, budget camcorders cannot compete with the quality of professional models.

There is just one jack, sometimes called a stereo jack, on it. The stereo plug combines the two extra channels.

The three channels are combined into one compressed stream, which has the consequence of lowering the quality of the transmitted audio and video.

More so, RCA cables are capable of transmitting analogue signals in addition to digital ones.

Because of this, you can’t use these to connect to a computer or any other digital device directly.

In addition, you can’t hook up an amplifier to anything without the requisite RCA cords.

Conclusion

RCA cables serve an important purpose in modern life. The desire to spend quality time with those closest to us is a prime example of this.

In addition, RCA cables are useful for hooking up stereos and speakers.

While the HDMI cable is often thought to be superior, the RCA cable really serves a comparable purpose.

The ability to put it to good use is all that’s required.
